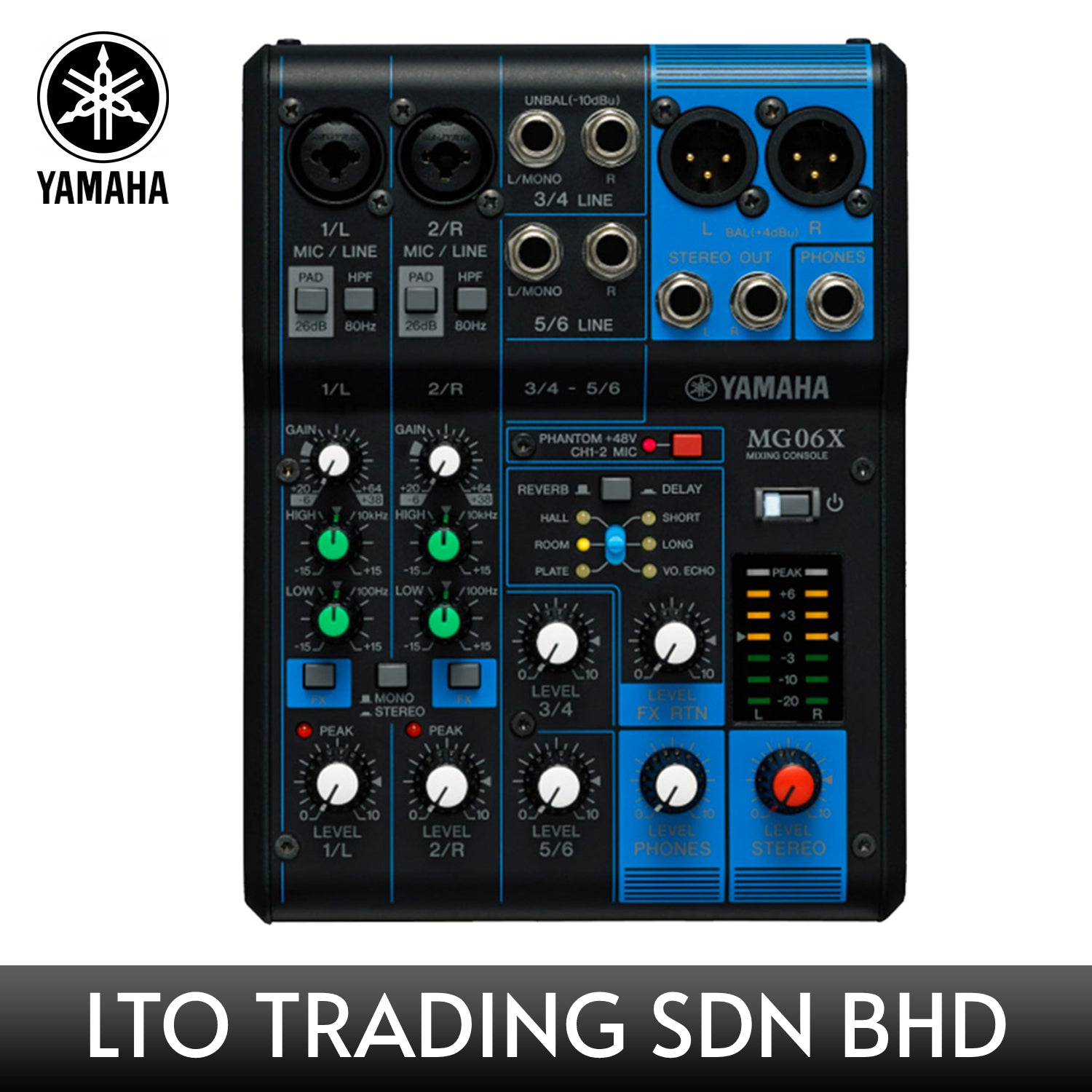

Yamaha MG06 6-Channel Analog Mixing Console
Yamaha

Yamaha MG06 6-Channel Analog Mixing Console

Model:
MG06

Compact 6-channel analog mixing console featuring studio-grade D-PRE discrete Class-A microphone preamps, balanced XLR stereo outputs, and durable metal chassis construction for live performance and audio setups in Malaysia.

Enquire on WhatsAppShare

Product Gallery

Product Gallery Main Image‹›
Yamaha MG06 analog mixer rear panel
Yamaha MG06 analog mixer side profile
No items found.

Product Description

The Yamaha MG06 is a compact 6-channel analog mixing console engineered to deliver transparent, uncoloured sound in an intuitive, ultra-portable format. Built for solo performers, small acoustic ensembles, content creators, and commercial AV installations across Malaysia, the MG06 combines Yamaha's renowned acoustic engineering with rugged reliability for stage and studio applications.

At the core of the Yamaha MG06 are two discrete Class-A D-PRE microphone preamplifiers utilizing an inverted Darlington circuit configuration. This studio-grade design delivers rich, natural bass response and smooth, articulate highs with exceptionally low distortion. Equipped with balanced XLR stereo outputs, switchable +48V phantom power, and a durable powder-coated metal chassis, the MG06 provides dependable audio performance in a compact footprint.

Key Features

  • 6-Channel Mixing Console: 2 Mic / 6 Line inputs (2 mono mic/line combo jacks + 2 stereo line pairs).
  • Discrete Class-A “D-PRE” Mic Preamps: Studio-quality preamps with an inverted Darlington circuit deliver fat, natural bass and smooth highs with minimal distortion.
  • Balanced XLR Stereo Outputs: High-grade XLR and TRS phone outputs ensure secure, balanced signal transmission to powered speakers or amplifiers.
  • Switchable +48V Phantom Power: Allows connection of professional condenser microphones on channels 1 and 2.
  • PAD Switch on Mono Inputs: 26 dB attenuation switch accommodates high-output instruments and microphones without clipping.
  • 2-Band Equalizer & High-Pass Filters: Musical shelving EQ (10kHz High, 100Hz Low) and 80Hz HPF (12dB/oct) on mono channels for precise tonal shaping.
  • Rugged Metal Chassis: Impact-resistant powder-coated steel housing ensures maximum durability for touring and venue installations.

Specifications

General Specifications

  • Model: Yamaha MG06
  • Mixing Channels: 6 Channels (2 Mono Mic/Line + 2 Stereo Line)
  • Stereo Bus: 1 Stereo Bus
  • Frequency Response: 20 Hz – 20 kHz (+0.5 dB / -0.5 dB)
  • Total Harmonic Distortion (THD+N): 0.01% @ +8dBu (20 Hz to 20 kHz), 0.003% @ +18dBu (1 kHz)
  • Hum & Noise (Equivalent Input Noise): -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual Output Noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
  • Phantom Power: +48 V (Channels 1 & 2)
  • Dimensions (W × H × D): 149 mm × 62 mm × 202 mm (5.9" × 2.4" × 8.0")
  • Net Weight: 0.9 kg (1.98 lbs)
  • Chassis: Metal housing
  • Power Supply: External AC Adaptor PA-130 (DC 12V / 1.0A)
  • Power Consumption: 12 W

Inputs & Outputs

  • Mono Inputs (Mic/Line): 2 combo jacks (XLR / 6.35mm TRS phone)
  • Stereo Line Inputs: 2 pairs (Channels 3/4 & 5/6, 6.35mm TS phone)
  • Stereo Outputs: 2 × XLR-3-31 balanced, 2 × 6.35mm TRS balanced phone jacks
  • Headphone Output: 1 × 6.35mm stereo phone jack

Channel Functions

  • PAD Switch: 26 dB attenuation (Mono channels 1 & 2)
  • High-Pass Filter (HPF): 80 Hz, 12 dB/oct (Mono channels 1 & 2)
  • Equalizer (HIGH): ±15 dB shelving @ 10 kHz
  • Equalizer (LOW): ±15 dB shelving @ 100 Hz
  • Level Metering: 2 × 7-segment LED level meter (PEAK, +6, 0, -6, -10, -20 dB)
  • Peak Indicator: LED illuminates at 3 dB below clipping level

Applications

  • Solo Performers & Duos: Ideal for singer-songwriters, acoustic guitarists, and vocal duos needing transparent mic preamplification and compact transport.
  • Small Meeting & Presentation Rooms: Compact mixing for conference podiums, boardroom microphones, and AV playback systems.
  • Content Creation & Podcasting: Clean microphone capture with +48V phantom power for broadcast condenser microphones.
  • Sub-Mixing for Keyboards & Drums: Convenient stage sub-mixer for routing multiple keyboard outputs or electronic percussion into a main PA console.
  • Commercial Audio Installations: Compact background music and microphone mixing for retail outlets, cafes, fitness studios, and educational facilities in Malaysia.

Downloads

Download Datasheet
Download User Manual
